Description

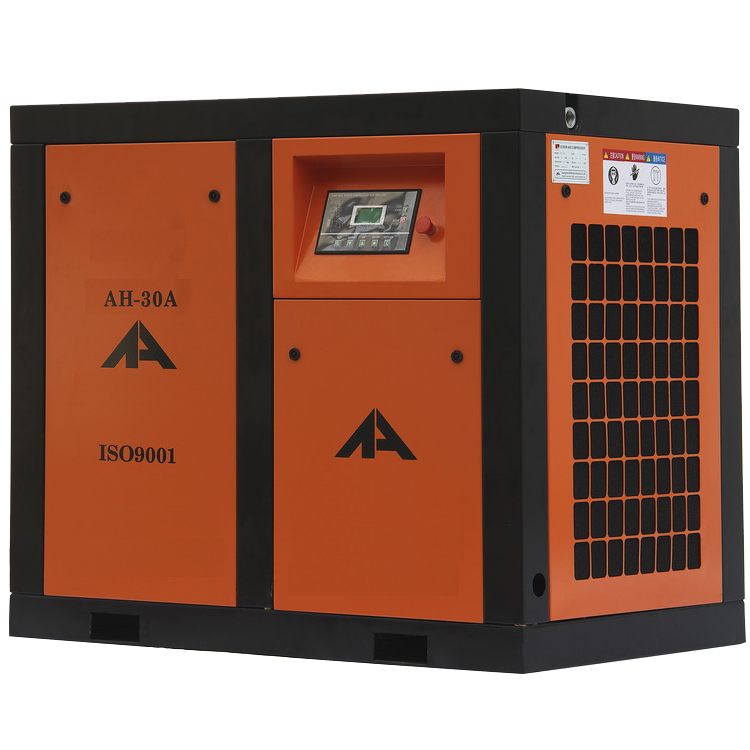

Screw Compressor 22KW 30HP AH30A
The New Hurricane AH-30A Screw Compressor is a 30HP 22KW 380V Compressor which supplies 134CFM of 3.8m3/min of air, at an output pressure of 7Bar. The AH-30A has a weight of 650KG.
Technical Data Screw Compressor 15KW 20HP AH20A
| Technical Data AH-30A Screw Compressor 22KW | |
| Description | Data |
| Model | AH-30A |
| Motor (KW) | 22KW |
| Motor (HP) | 30HP |
| Built in Dryer | No |
| Volume (CFM) | 134CFM |
| Volume (m3/min) | 3.8m3/min |
| Volume (l/min) | 3794l/min |
| Rated Pressure (MPA) | 0.7MPA |
| Compression Stage | Single Stage |
| Ambient Temperature | -5°C to +45°C |
| Cooling Model | Air Cooling |
| Discharge Temperature | Ambient temperature + 15°C |
| Noise Level | 64dB +/- 2dB |
| Drive Method | Multivee Belt |
| Voltage | 380V |
| Starting Method | Star Delta |
| Dimensions (W x D X H) | 1150mm x 900mm x 1380mm |
| Weight | 650Kg |
| Air Outlet Pipe Size | 1″ |
Terms & Conditions
| Terms & Conditions | |
| V.A.T. : | The quoted price excludes V.A.T. |
| Warranty : | One Year |
| Terms of Payment : | Payment before delivery, or shipping. |
| Installation : | Not Included, To be installed by local qualified Compressor Mechanic |
| Training : | No training included, comprehensive user manual included, easy operation. |
| Delivery : | Delivery in Polokwane, and Centurion is included. |
| Quotation Validity : | 30 Days but subject to extraordinary currency fluctuations. |
