Preparation Bay Hurricane YS100B
The Hurricane YS100B preparation bay is a downdraft prep deck with rear wall extraction complete with lighting. This is an ideal model if you have limited space and is available with corner pillars or suspended plenum.
Technical Data YS100B Preparation Deck
| Technical Data YS100B Preperation Deck | |
| Description | Data |

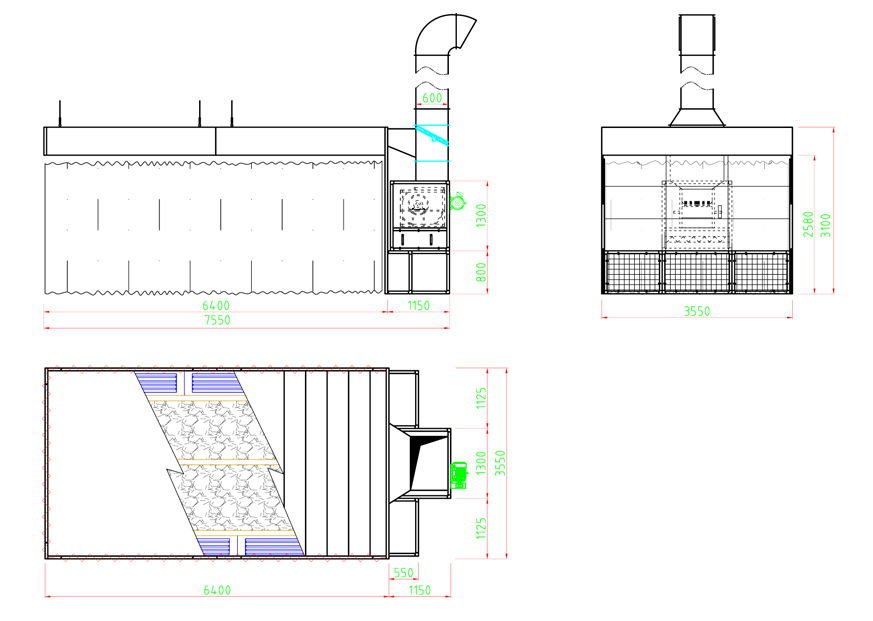

| External Dimentions | 7550mm x 3550mm x 3100mm (L x W x H) Extra height required for Ducting |
| Internal Dimentions | 6300mm x 3450mm x 2700mm (L x W x H) |
| Basement | No Basement, mounts directly to concrete slab, Extraction through backwall |
| Room Body | 50mm thick EPS fireproof, heat preservation wall panels at back of Prepdeck, 3 x sides with PVC Curtains |
| Roof Plates | Galvanised steel roof plates |
| Lighting | Ceiling Lights : 8 x Units x 4Pcs = 32 Pcs x 36W Flourescent lights |
| Glass | Clear tempered glass. |
| Exhaust system positioning | Installed at rear of preperation deck. |
| Exhaust System | Exhaust = 1 x 4KW centrifugal fan air capacity = 15000m3/hour with vent control device. |
| Filtering System | Ceiling Filter(560G Ceiling Filter), Floor Filter Undergrid (Paint Arrestor Filter) and Exhaust filter (200G Pre-Filter) + (Paint Arrestor) |
| Control system | Main power switch, lighting switch, fan switch, emergency stop switch. |
| Noise | < 80 dB |
| Power Supply | 380V 3Phase |
| Total Power | 5.2KW |
Terms & Conditions
| V.A.T. : | The quoted price excludes V.A.T. | |
| Warranty : | One Year | |
| Terms of Payment : | 30% Deposit and balance by Bank Guarantee payable on completion of installation. | |
| Training : | Training on site is included, after commissioning. | |
| Installation & Commissioning : | In Gauteng accommodation and meals for the installation team will not be charged for. Installation and Commissioning is included however the connection of air hoses, water traps, electricity, roof sealing around the ducting, Flooring and any extension of ducting is for the clients account. | |
| Delivery : | Diesel is charged at R5.00/KM | |
| Quotation Validity : | 30 Days but subject to extraordinary currency fluctuations. | |
| Please see our contract of sale for our full and detailed terms and conditions | ||
